Before You Buy: Universal UTV Fitment
- This is a universal underbody system, not a guaranteed make/model-specific kit.
- Requires a working winch installed on a compatible vehicle-specific winch mount. The winch and winch mount are not included.
- Installation may require drilling or trimming a skid plate or guard and shortening the supplied U-bolts.
- Confirm suitable frame attachment points, winch-line routing and front-tire clearance before ordering.

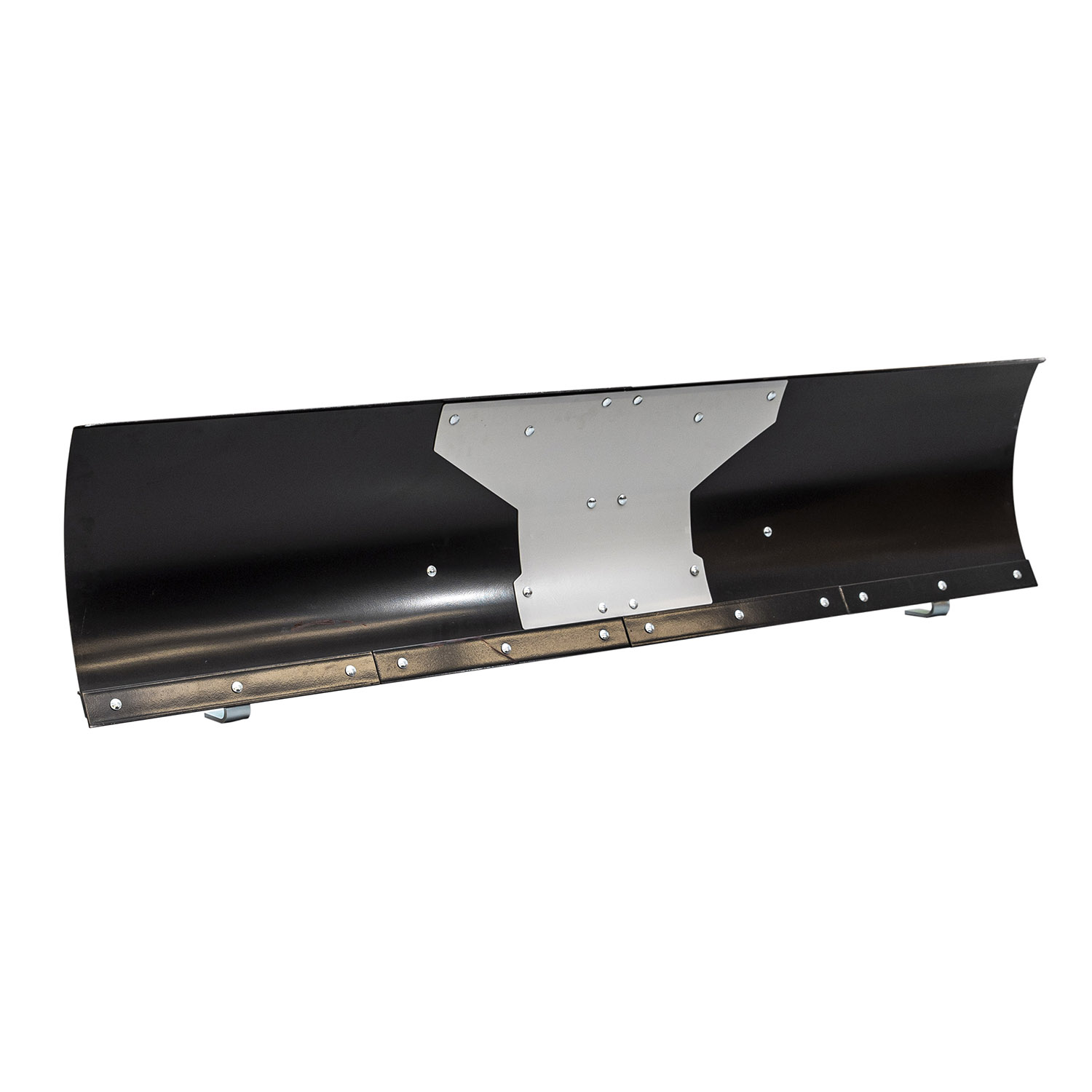

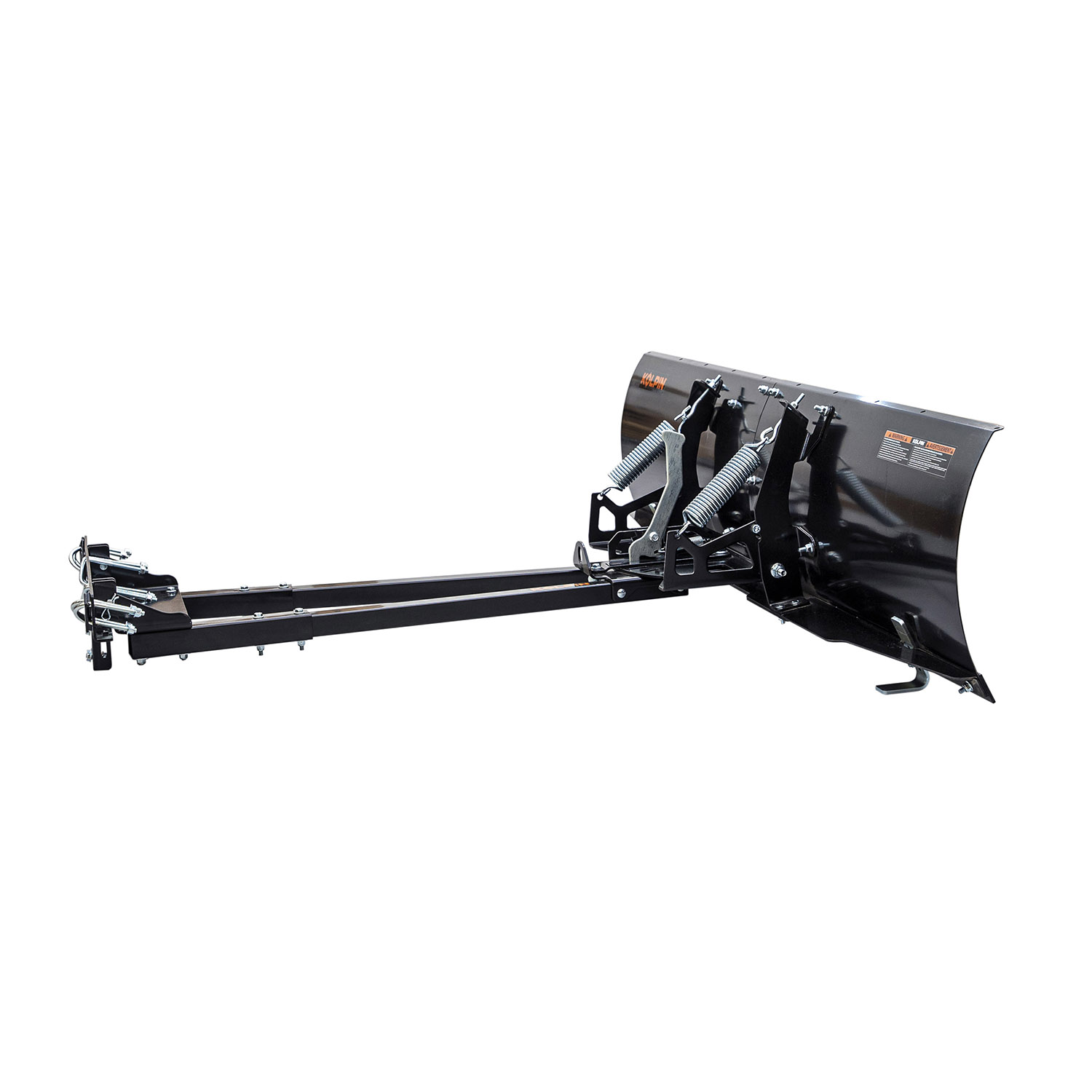

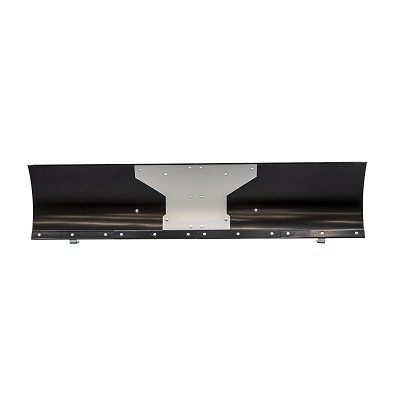

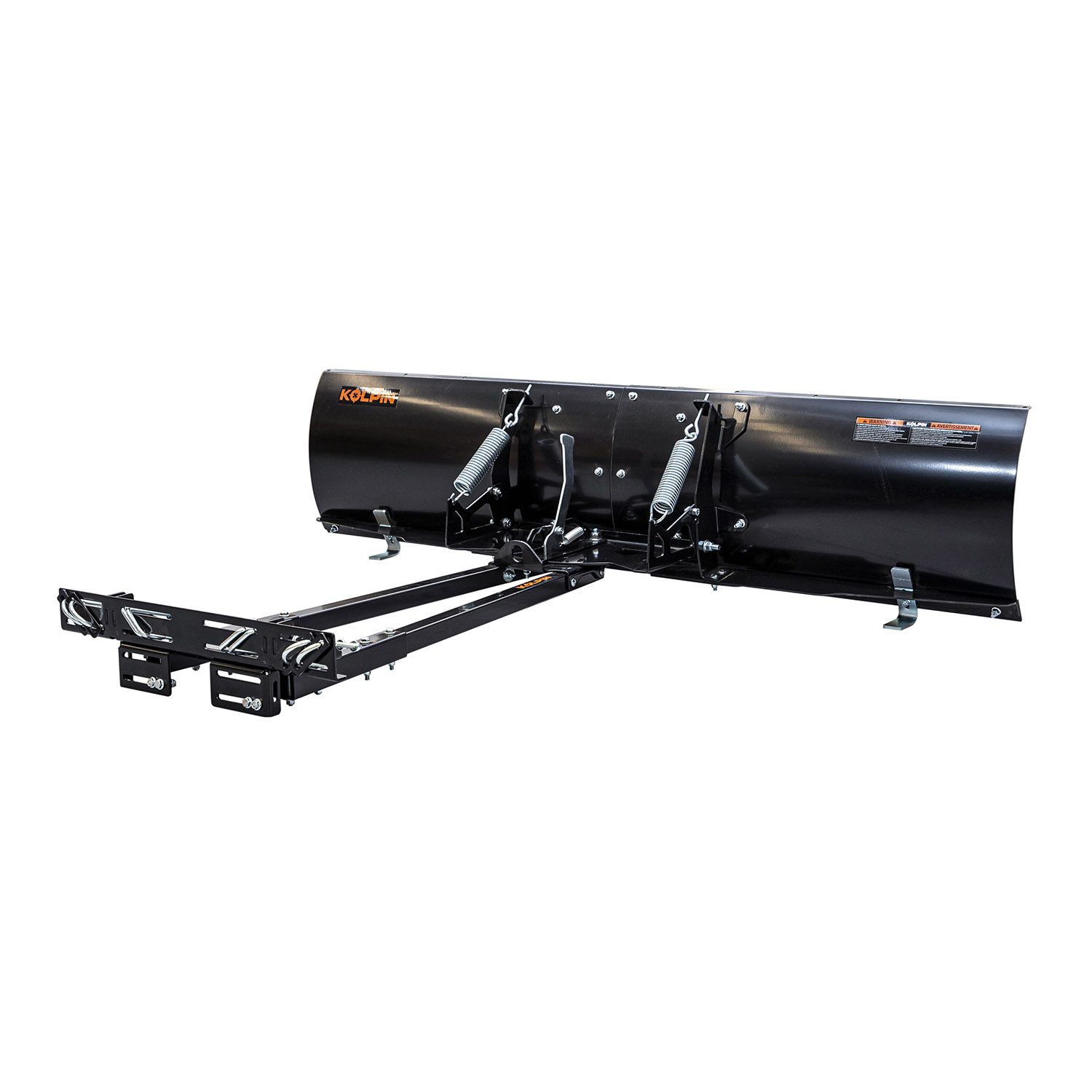

The Kolpin UTV Expedition Plow System combines a rugged 70-inch steel blade, square-tube push frame and universal underbody mid-mount in one bolt-together package. The 14-gauge blade uses a double layer of steel at the center for added strength and dependable snow-moving performance.
What's Included
- 70-inch, 14-gauge steel Expedition blade and hinge-pivot assembly
- Square-tube push-frame assembly with UTV extensions
- Universal underbody mid-mount system
- Dual trip springs
- Height-adjustable heavy-duty skid shoes
- Reversible, double-sided steel wear bar
- Mounting hardware and installation instructions
Required for Operation - Not Included
- UTV winch
- Compatible vehicle-specific winch mount, unless a suitable winch is already correctly installed
The universal plow mount included with this system attaches the plow to the UTV. It does not replace the mounting plate used to secure a winch to the vehicle.
Features and Specifications
- Blade width: 70 inches
- Blade construction: 14-gauge steel with a reinforced center section
- Five blade-angle positions
- Approximate product weight: 143.3 lb
- Maximum operating speed with blade installed: 5 mph
- Approximate plow assembly time: 45 minutes
- Approximate vehicle installation time: 15-30 minutes; modification time may be additional
Universal Mounting Information
Kolpin's instructions describe the mount as designed for multiple UTV brands and frame layouts. The front edge of the base mount plate should be positioned approximately 17-19 inches from the bottom edge of the front bumper. Round- and square-frame U-bolts are supplied, but the exact installation varies by vehicle.
The manual includes example mounting layouts for the Polaris Ranger XP 900/1000, Kawasaki Mule Pro-FX/Pro-DX, classic Polaris RZR 570, Can-Am Defender and Yamaha Wolverine. These are installation examples, not blanket fitment guarantees for every model year, trim or configuration.
Important: Inspect the underside of the vehicle before ordering. Wires, hoses, brake lines, skid plates, guards and other accessories must not interfere with the plow mount or winch line.
Instructions and Product Support
Download the 10-5520 installation manual (PDF)
Genuine Kolpin part number: 10-5520
