Kolpin Plows
Build Your Kolpin Plow System
Find your plow, choose your blade, and complete your installation. We show vehicle-specific requirements and flag universal systems that need a fitment check.
Need help choosing? Compare the systems below, or call 877-203-4939.
Compare systems ↓Compare Kolpin plow systems
Choose the mounting system for your machine, then the blade. A winch and its installation hardware are separate unless you already have compatible equipment.
| System | Vehicle / connection | Blade choices | What sets it apart |
|---|---|---|---|
 ConquerorFront-connect frame | UTV / front-connect | Separate 31-series blade | Up to 30 in. lift; optional Power Angle |
 Storm ChaserATV push tube | ATV / underbody mount | Separate 31-series blade | 12 in. lift; manual angling |
 High RiseArticulated ATV frame | ATV / underbody mount | Separate 31-series blade | 21 in. lift; optional Power Angle |
 Switchblade ATV / UTVATV kit shown | Universal underbody; verify installation | ATV: 48 or 60 in. steel UTV: 60 or 72 in. steel | Blade, frame and universal plow mount in one box |
 Expedition / Drifter ATVExpedition steel kit shown | ATV / forward mount | 52 in. steel / 52 in. poly | Bolt-together plow kits; verify vehicle application |

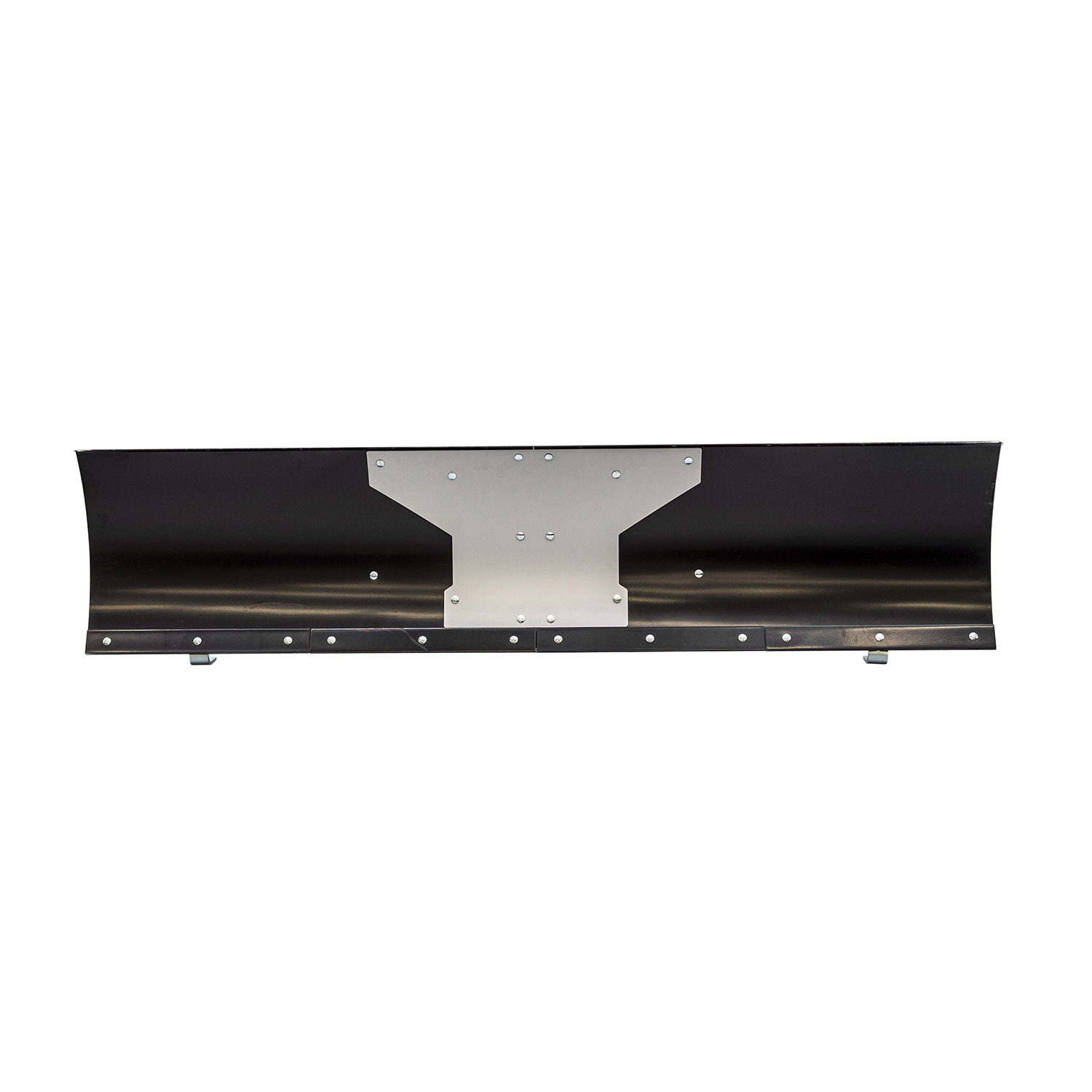

 Expedition UTV70 in. steel kit | UTV / verify vehicle application | 70 in. steel | View 10-5520; contact us to confirm fitment |
Blade-to-frame compatibility does not establish the right blade size for your vehicle. Check vehicle width, clearance and manufacturer recommendations.
System details & common questions

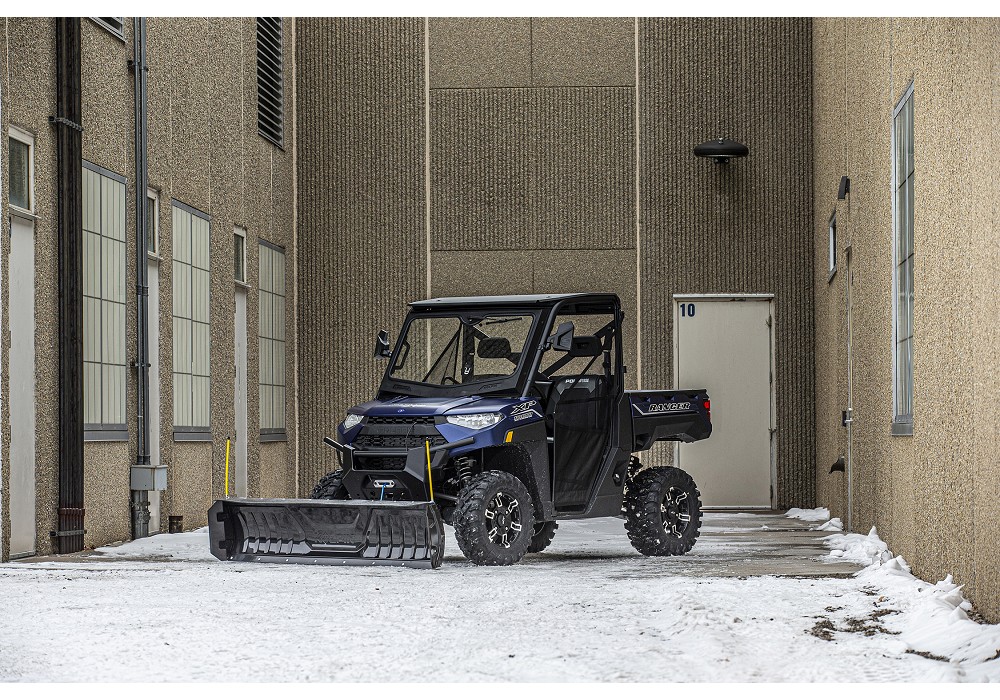

Conqueror: front-connect UTV system

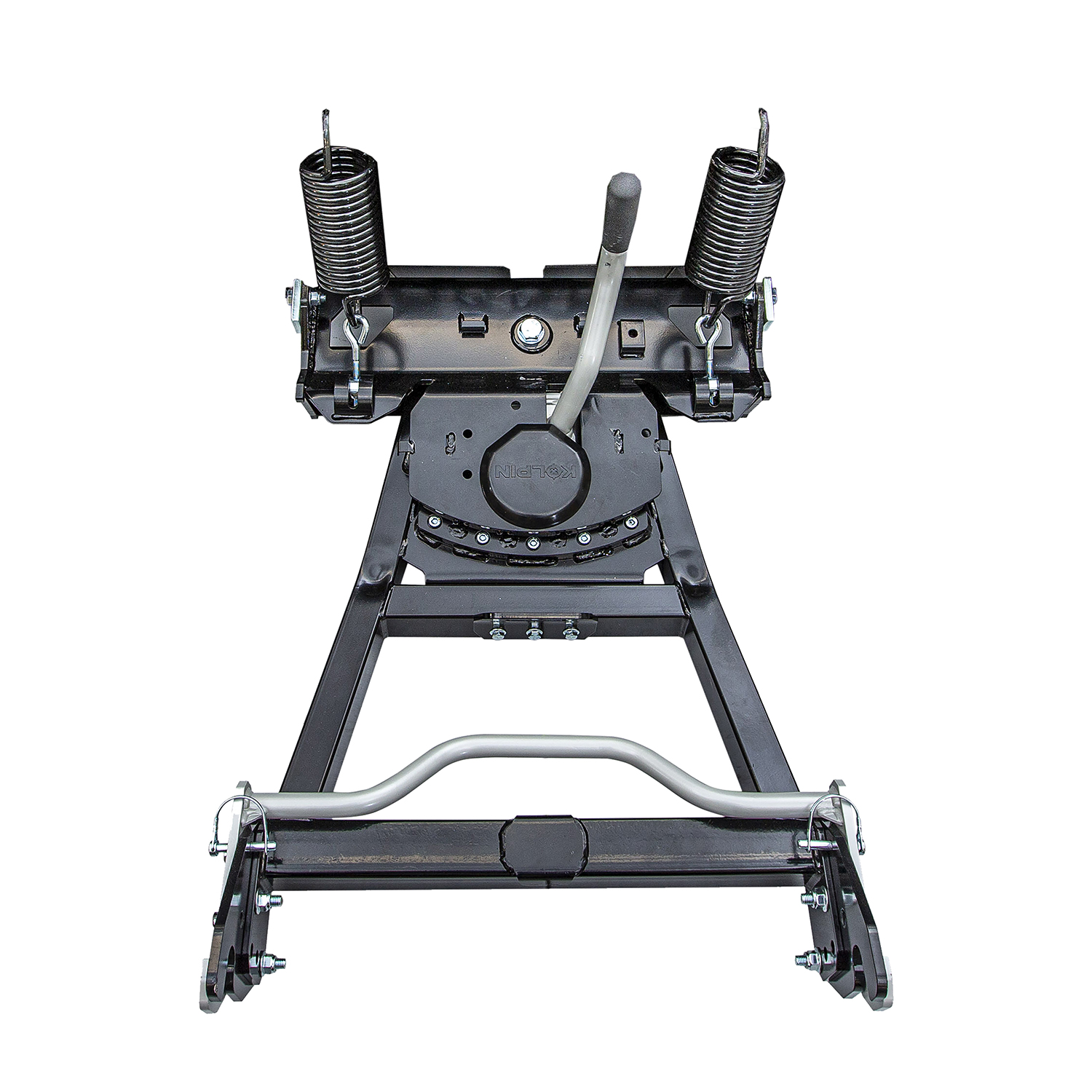

The 35-0070 frame uses a vehicle-specific plow mount or a documented factory interface. Choose a separate steel or poly blade. Some applications require a specific Kolpin winch mount, drilling, trimming or bumper removal. The builder carries these notes into Review.
Storm Chaser vs. High Rise: which ATV frame?

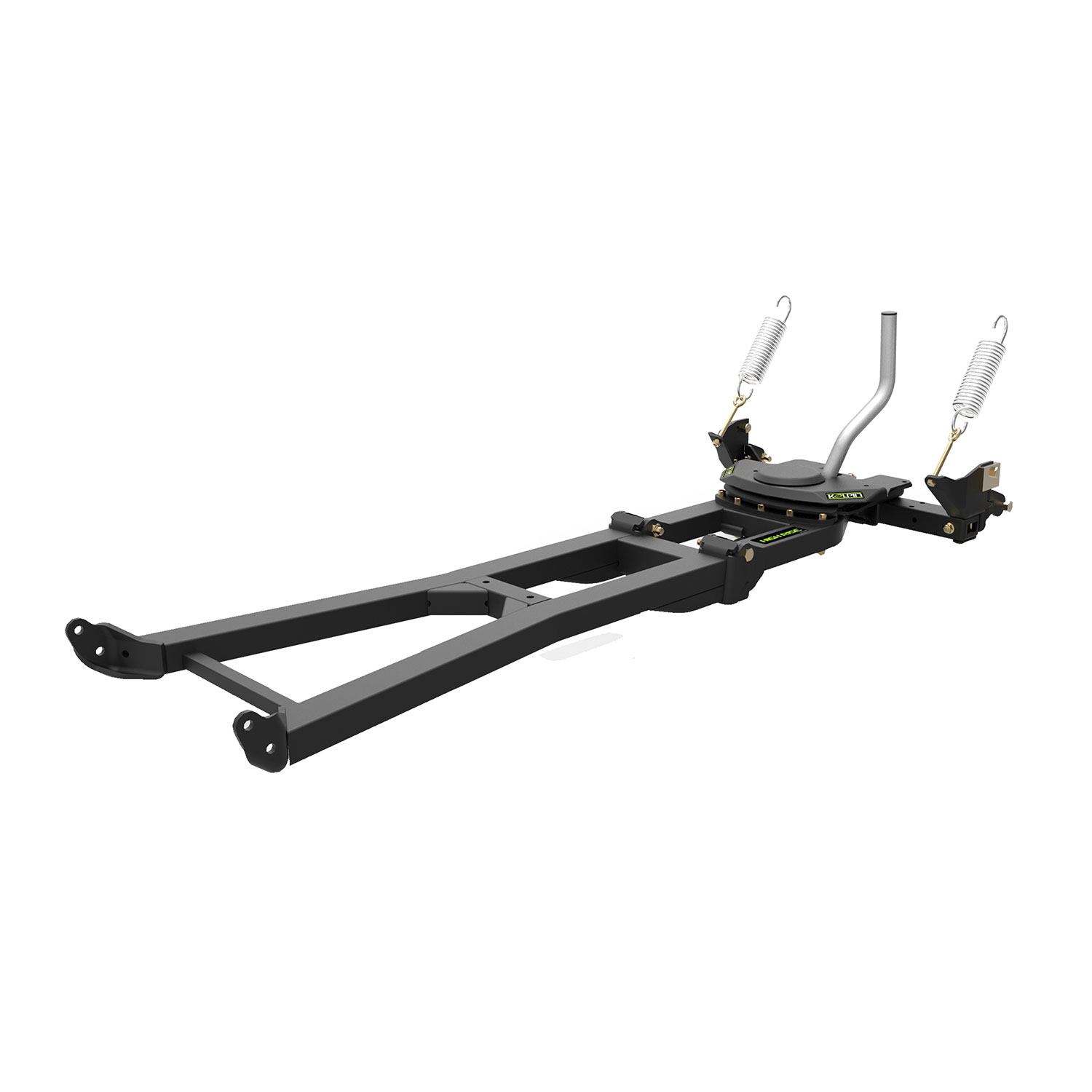

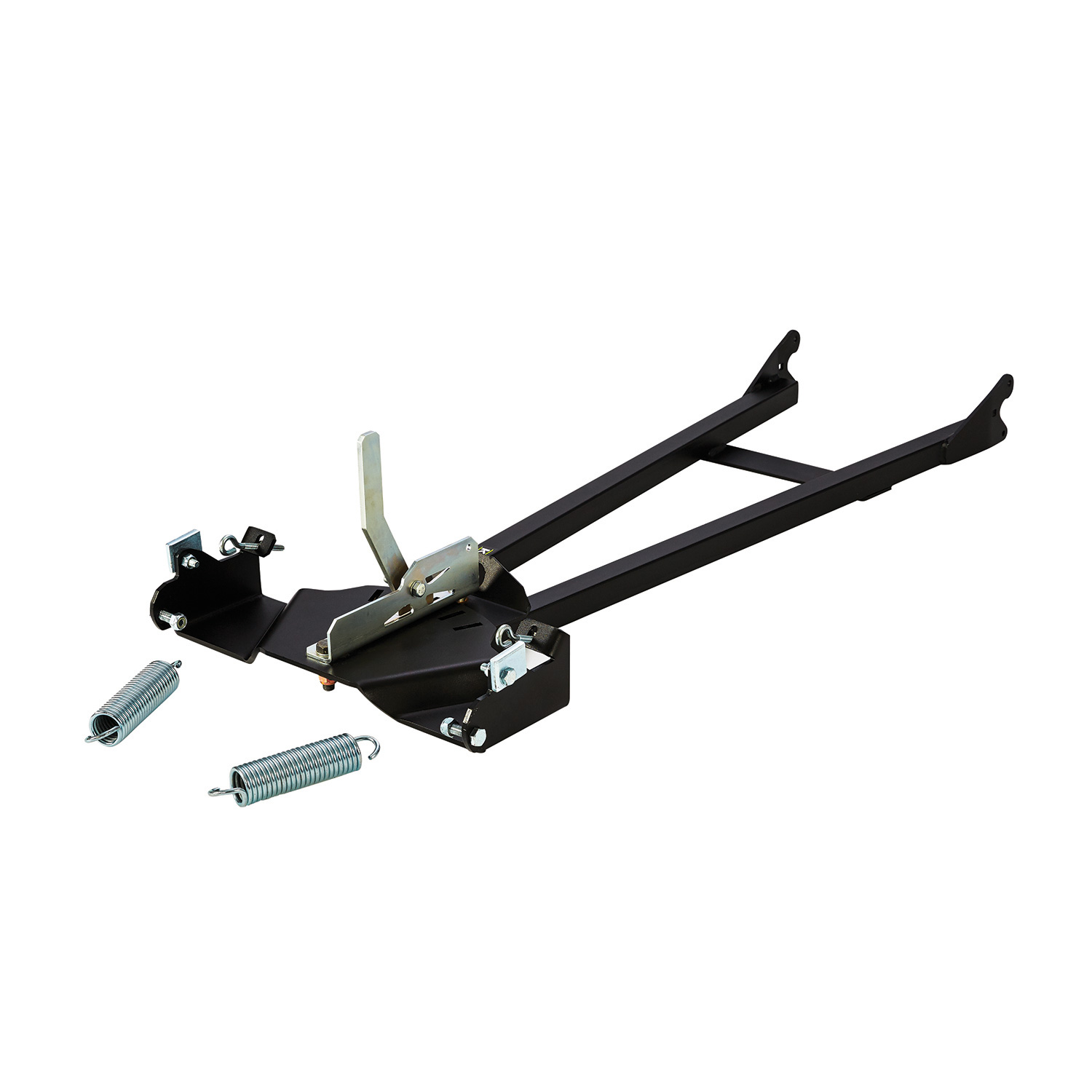

Storm Chaser 33-0070 is a welded push tube with 12 in. lift. High Rise 33-0000 uses an articulated frame with 21 in. lift and accepts Power Angle 33-0100. They share the applicable ATV underbody mount. Adding Power Angle to a Storm Chaser build also requires the High Rise upgrade.
Manual lift 15-0090 is a Storm Chaser application, not a universal substitute for a winch. Contact us to verify an available manual-lift option for your exact system.

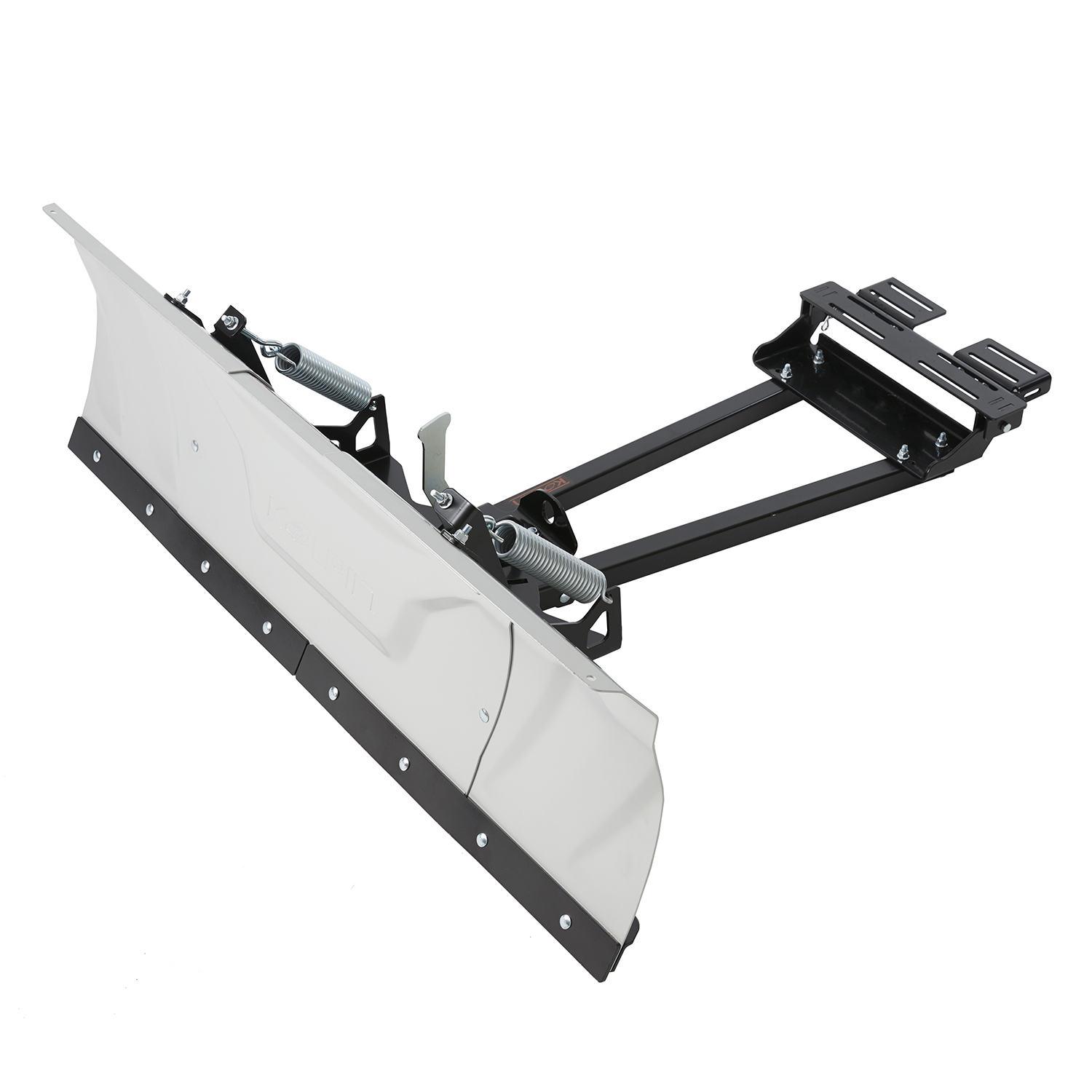

Find a system for your machineSwitchblade: what does universal mean?
The kit includes a blade, frame and universal underbody plow mount. Universal does not mean every machine: chassis attachment points, skid plates, clearance and winch-line routing must be checked. A winch mount is separate from the included plow mount.
ATV 17-0000 assembles at 48 or 60 in.; UTV 17-5000 assembles at 60 or 72 in. Confirm the installation for your exact vehicle before ordering.
Check your machineExpedition and Drifter: ATV and UTV options

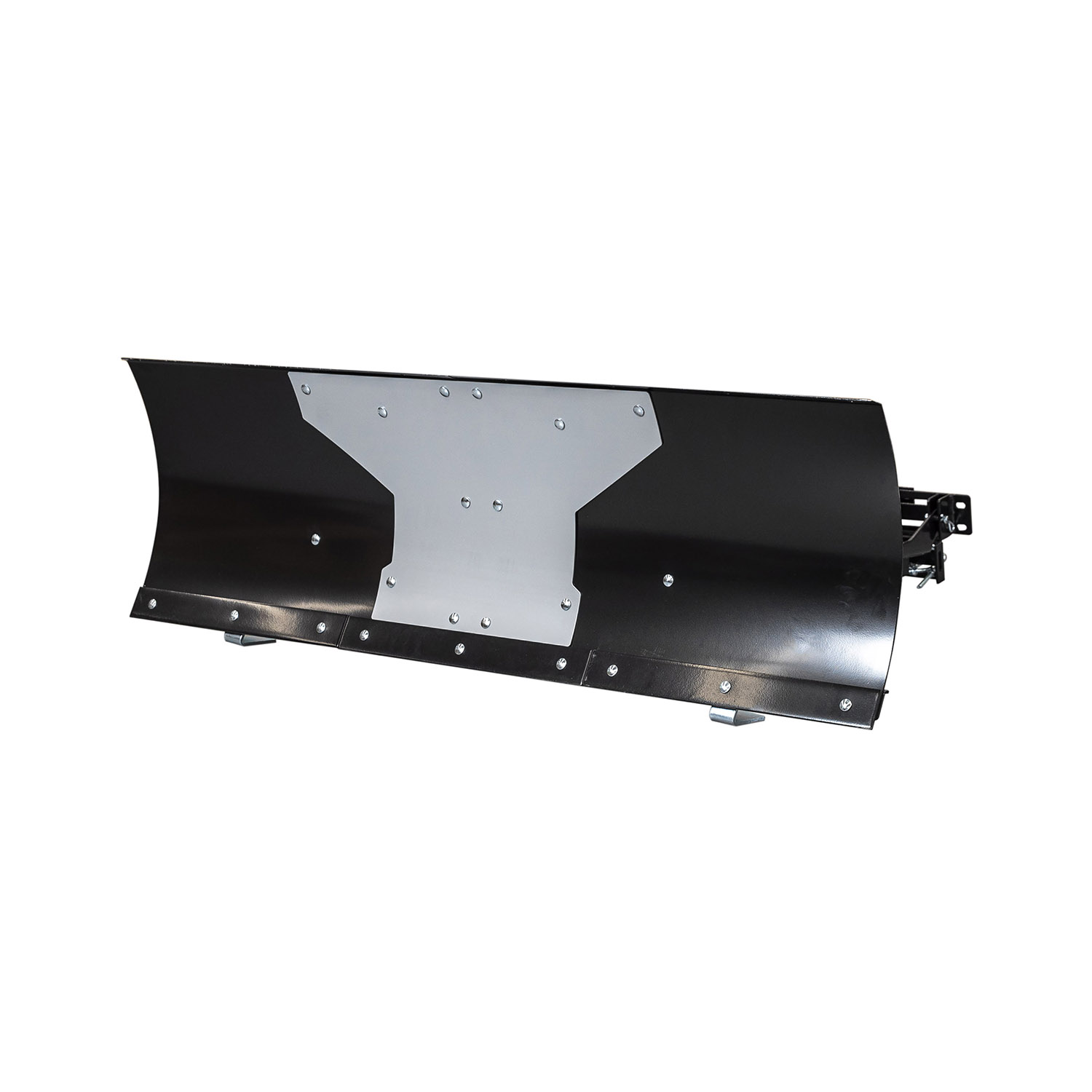

ATV Expedition 10-0520 includes a 52 in. steel blade; ATV Drifter 10-0550 includes a 52 in. poly blade. UTV Expedition 10-5520 includes a 70 in. steel blade. These are distinct boxed systems; their blades and mounts are not interchangeable choices in the Conqueror builder. Lift equipment is separate.
Shop boxed plow systemsCan I keep my existing winch and mount?
Yes, where the existing installation is compatible with your plow and vehicle. A Kolpin winch mount is required only where the application specifies it. On those applications, you must add the specified mount or confirm that exact mount is installed. An installed winch alone does not confirm plow compatibility.
What is included with a separate blade?
The component blades include skid shoes and a wear bar. Extra shoes and wear bars are replacement parts, not required new-kit purchases. A poly moldboard does not make the steel ground-contact parts non-marring.
Can I use tracks?
Supported Conqueror installations use extension 35-0350; supported Storm Chaser and High Rise installations use 33-0350. The builder asks about tracks for these systems. Do not assume Switchblade, Expedition or Drifter is supported with tracks; contact us first.
